Fish Feed Grain Grinder
Basic information:

Application: Used to crush various grains and other granular materials to provide raw materials for feed production lines

Capacity: 100kg/h-10ton/h

Certification:  CE, ISO9001, SGS

Delivery Time:  Around 10 days

Planets

Send Email Contact Us

Description

In the feed production process, about 60% of the feed materials need to be crushed(For example, the raw materials contain corn, soybeans and other grain particles), and the crushing energy consumption accounts for more than 30% of the total power energy consumption of the whole plant. Therefore, if the crushing process can be optimized to improve the crushing efficiency, it will be reduced under the same energy consumption. Obtained very significant economic benefits. Crushing is one of the important processes in feed processing. On the one hand, it provides conditions for the subsequent ingredients, mixing and granulation processing; on the other hand, the crushing particle size of feed has a significant impact on feed digestibility and utilization, animal production performance and animal gastrointestinal health. The main factors affecting the crushing efficiency are the characteristics of raw materials, the fineness of crushing, and the configuration of crushing equipment and process. The grinder specially configured by our company for the animal feed production line is perfectly matched with our animal feed processing equipment, so that it can not only provide suitable fineness of raw materials for the feed processing production line, but also save electricity.



Features:


1. Adopt the progressive technological programs, well-designed;

2. Optimize the arrangement of knives, adjust the gap between knives and sifters.

3. Many precision testings to insure equipment running smoothly and reduce noise, optimal performance.

4.  Innovative low-power hammering process can enhance friction, thereby reducing required power and increasing output by 25%

5. Movable and opened operation door, new modal of sifter install tool, makes the operation humanistic and convenient.


Model used for small feed production line:

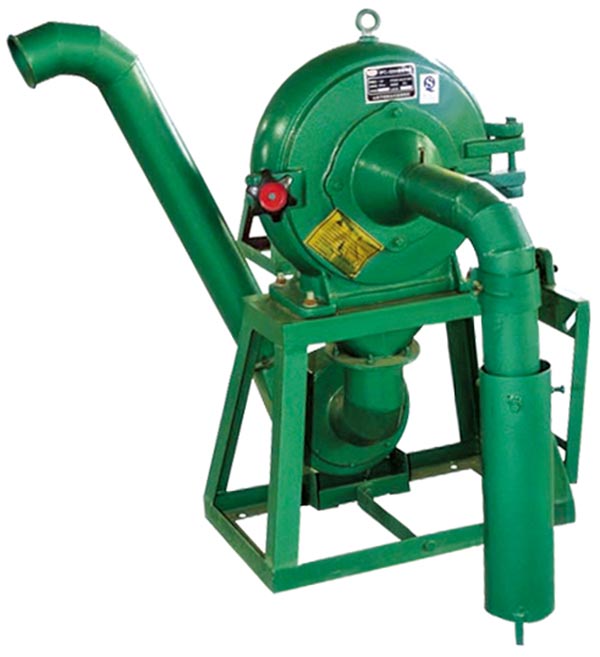

fish feed grinder

Technical Parameters:


 Model  WF-30  WF-40  WF-50  WF-60  WF-80
 Installed Power  5.5kw  7.5kw  20.5kw  36kw  52kw
 Capacity  100-300kg/h  200-400kg/h  300-600kg/h  400-800kg/h 600-1500kg/h
 Dimension  4500×1100×2800mm  5000×1400×2800mm  5500×1800×3000mm  6000×1800×3000mm 7000×2500×3300mm

Model used for large feed production line:

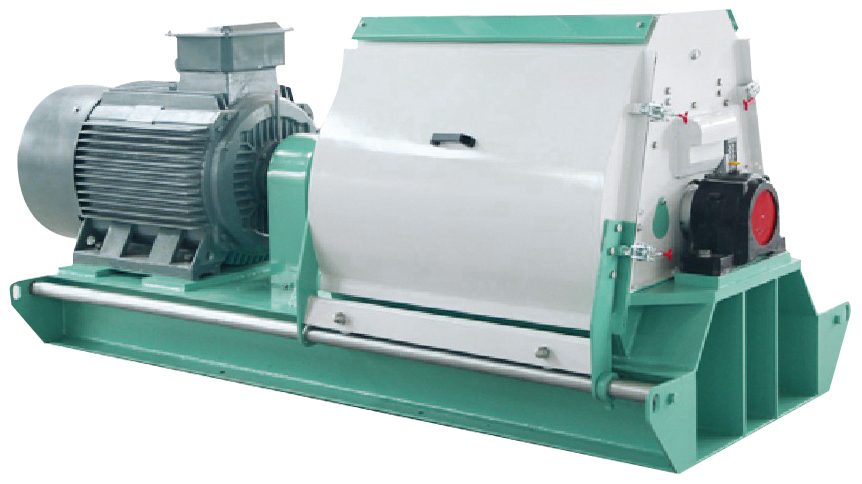

pet food grinder

Technical Parameters:


 Model Installed Power  Capacity  Dimension
 SF40  37kw  2-5ton/h  1600×950×1100mm
 SF60  55kw  3-8ton/h  2100×1000×1200mm
