Dry Type Pet Food Production Line
Basic information:

Application: Pet food manufacturers,fish feed factories, fish ponds, pet food shops, pet stores, pet clinics, pet hospitals.

Capacity:  100kg/h-5000kg/h

Certification:  CE, ISO9001, SGS

Delivery Time:  Around 30 days

Planets

Send Email Contact Us

Description


Pet food is a nutritious food specially provided for dogs, cats, fish and other pets. It is a high-end animal food between human food and traditional livestock and poultry feed.
Generally speaking, the pet food we often see and talk about in our daily life refers to dry-type puffed pet food, which also belongs to commercial pet food. It is a pet food that is made by mixing many nutrient materials, then puffing or extruding, and then drying, dehydrating, and seasoning. The moisture content is generally below 12%. This type of food is comprehensive and balanced due to its comprehensive nutrition. It has a long shelf life, convenient feeding and carrying, affordable price and more and more accepted and sought after by people. At the same time, it also has the characteristics of easy digestion and absorption. The digestibility of this type of dog food can reach about 70%. In addition, it The unit heat energy can reach 6.27~6.69KJ/kg, which is very rich in energy. Because of this, this kind of dog food has penetrated more and more into many families with pets.
Dry-type pet food production line is used to produce dry pet food.
The preparation methods of dry pet food and wet pet food are both based on the puffing process. Dry puffing requires the addition of water to the raw materials during production and processing. The raw materials do not undergo pre-conditioning treatment before entering the puffing bin. The heat generated during the puffing process is all passed through the screw and shear plate under the action of mechanical extrusion. And produced in the puffing cavity.
The main purpose of pet food using the puffing process is:
1. Improve the palatability of pet food;
2. Change or improve the nutritional value of pet food;
3. Improve pets' digestion and absorption rate of food;
4. Change the shape and structure of pet food to make it easier for pets to eat;
5. Change the content of different nutritional indicators of pet food, such as reducing the moisture content in order to improve the shelf life of the food, which is conducive to storage;
6. Change the bulk density of the food, squeeze granulation and briquetting to increase the bulk density of the food;
7. Kill all kinds of molds, salmonella,and other harmful substances, and improve the safety and hygiene of pet food;
According to the market demand or pet physical need, we provide different formulas by changing the content such as meat, grain,and microelement nutrients. The size and shape of pet food can be adjusted by changing different mouds and parameters.
The dry type pet food production line contains a mixer, a screw conveyor, a pet food extruder, an air conveyor, a dryer,  a flavoring machine, a cooling machine, and a packing machine. The configuration can be changed according to the customer's demand. The pictures of the production line just show only one of the models and part of the machines, so welcome to contact us for more details and quotation at any time, all contact information is valid.

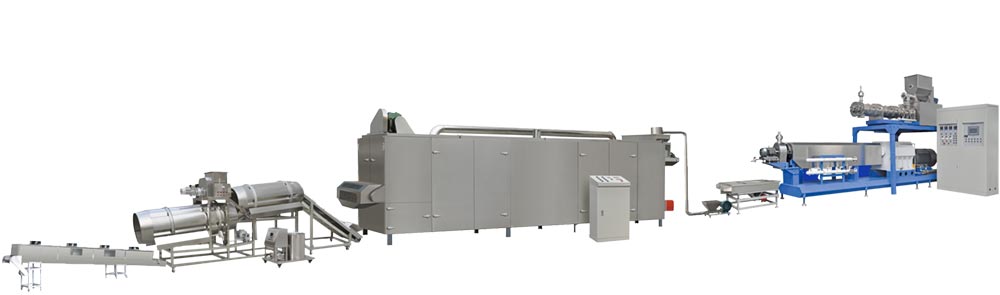

Dry Type Pet Food Production Line


Features:


1.frequency speed controlling with high automation and stable performance.
2. The screws are made of alloy steel and special craft, durable usage, high pressure, the screw life is longer. Adopting the building block structure and combining willingly according to the different demands.
3. The forced lubrication system, can guarantee the equipment transmission life longer.
4. Auto-temperature control system makes the temperature control more direct viewing and the parameter more precise.
5. Self-cleaning, when stopping, it can be cleaned without disassembling.
6. According to different screw design rates to full different technology requests.

7. This equipment has a wide material, multi-shape products, and flexible collocations. We can produce the different products according to the different models and collocations.


Technical Parameters:


 Model Capacity   Installed Power  Main Motor Power  Dimension
 TSE65  100-150kg/h  74kw  22kw  17×1.5×2.2m
 TSE70  200-280kg/h  105kw  30kw  20×1.5×2.2m
 TSE75  300-400kg/h  160kw  55kw  25×1.5×2.2m
 TSE85  400-600kg/h  175kw  75kw  30×1.5×2.6m
 TSE90  800-1200kg/h  180kw  90kw  40×2.0×2.6m
 TSE95  1000-1500kg/h  190kw  110kw  45×2.0×3.5m
 TSE120  2000-2500kg/h  245kw  135kw  60×3.0×3.5m
 TSE135  2500-5000kg/h  290kw  160kw  780×3.8×3.5m



Pet food made by our equipment:


pet food


Fish feed made by our equipment:


fish feed

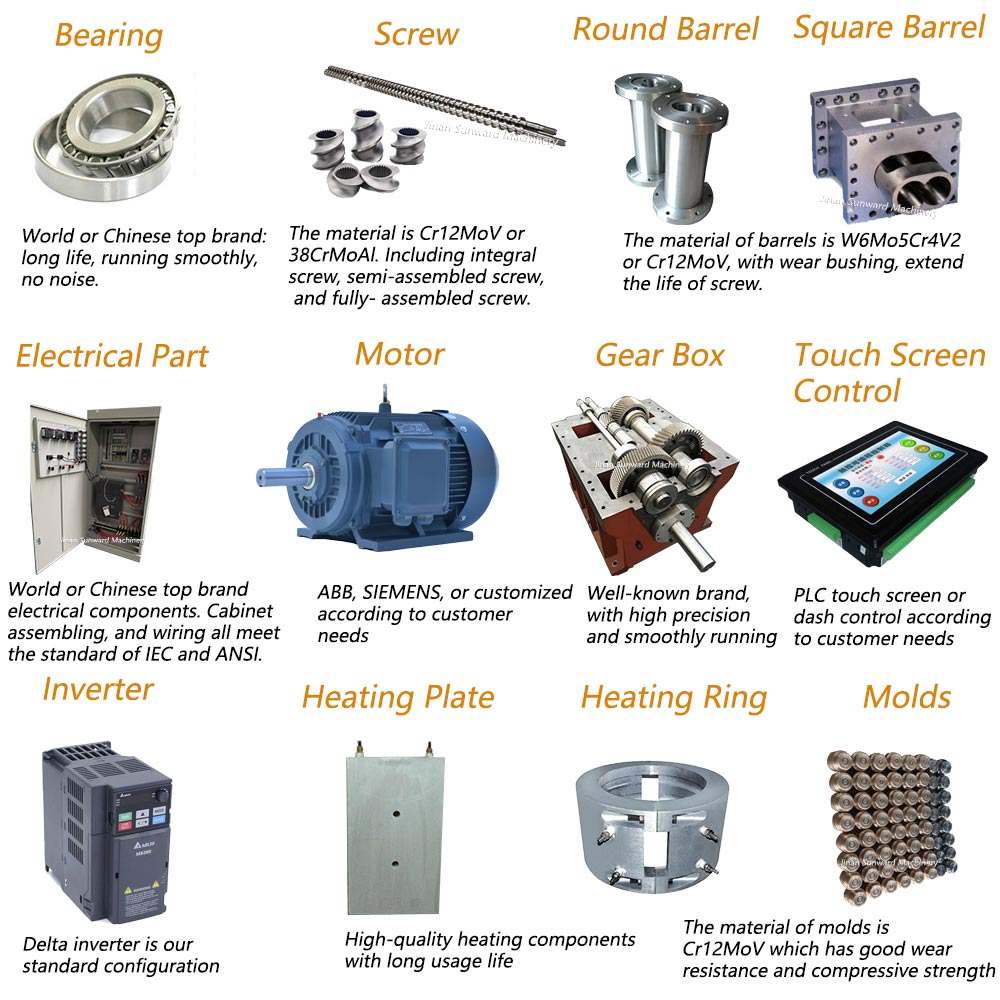

Parts:


parts of pet food machines

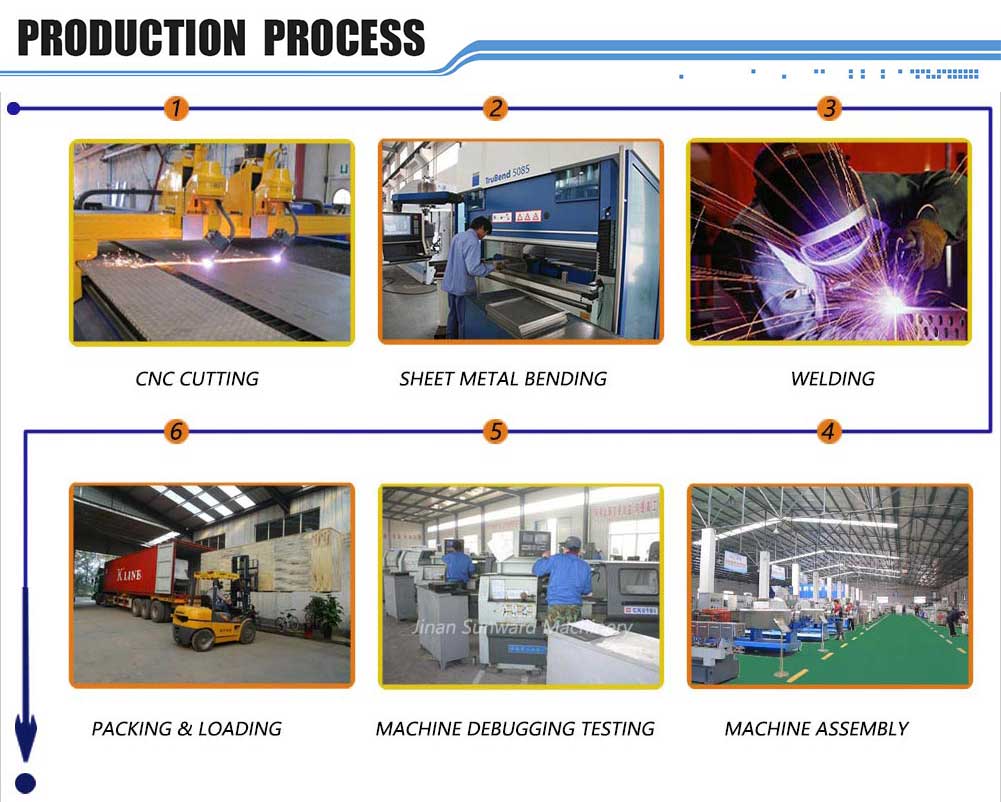

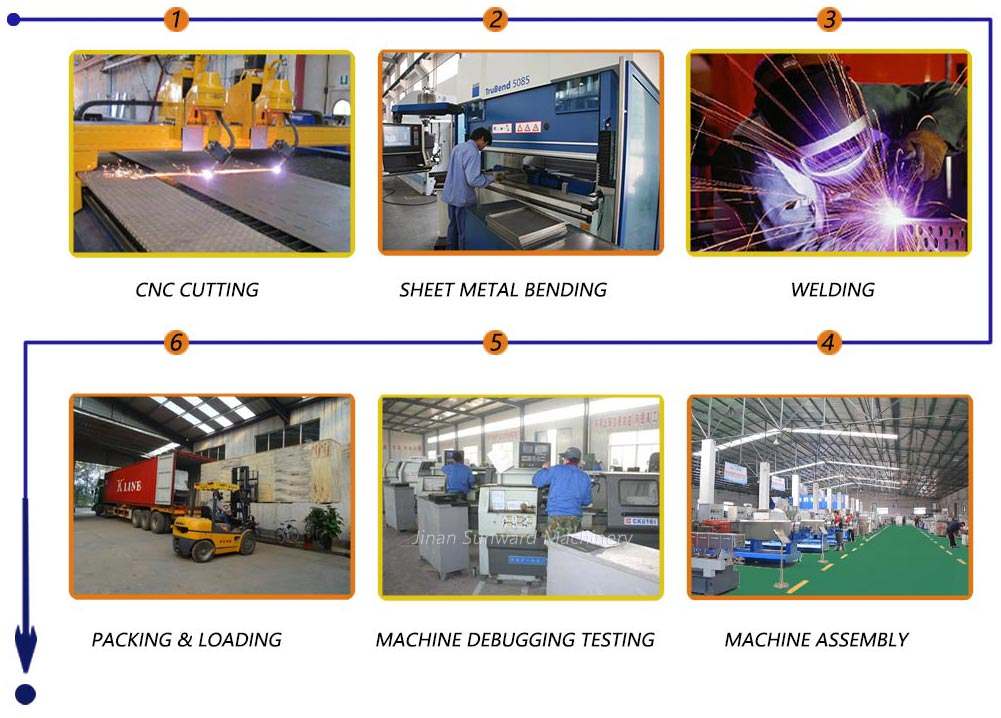

Production process:


production process


Our team:


Jinan Sunward's factory


Dog food producing video:

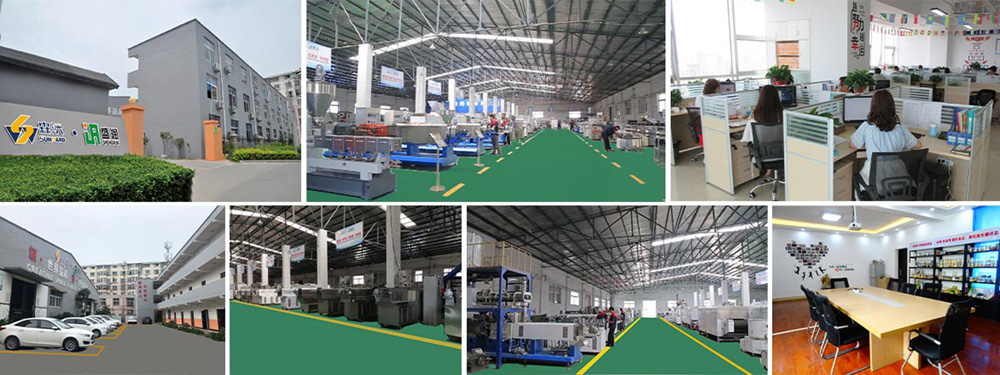

Our factory:


Jinan Sunward's team

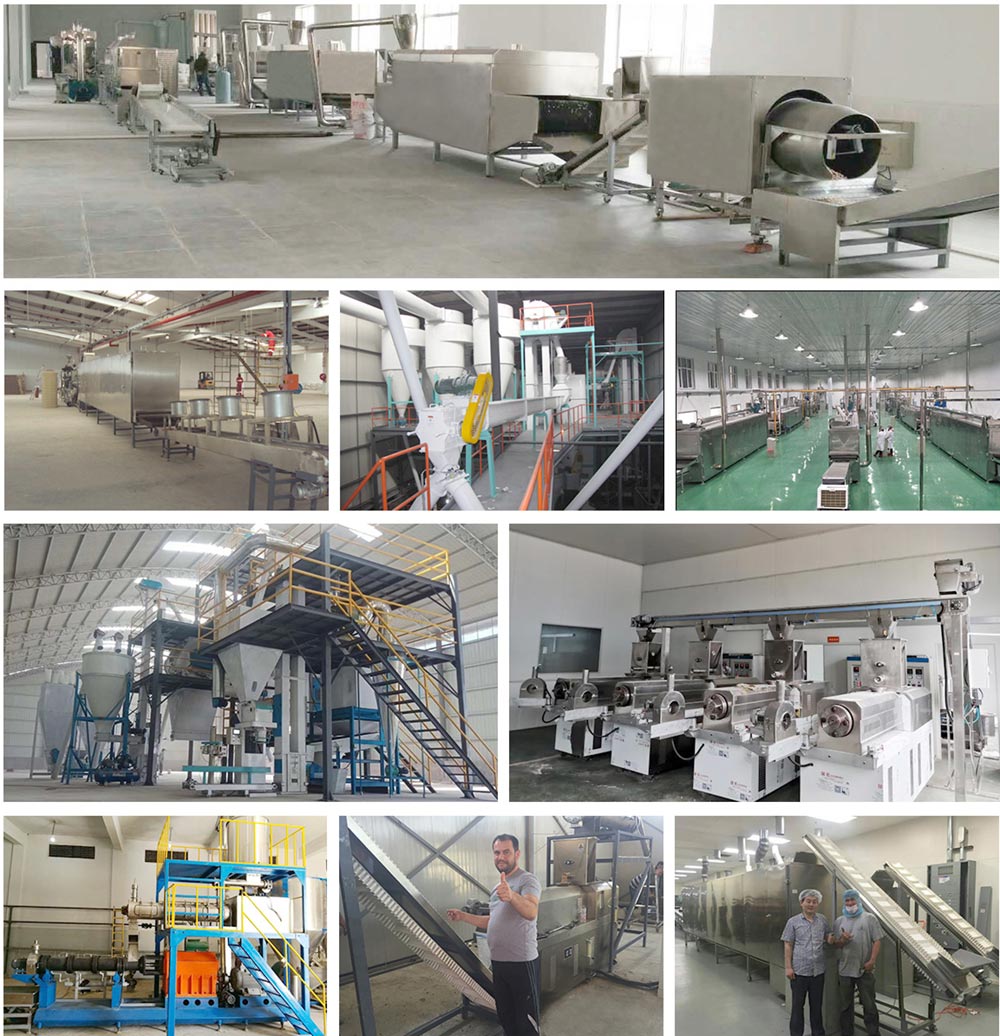

Projects of our clients:


project cases

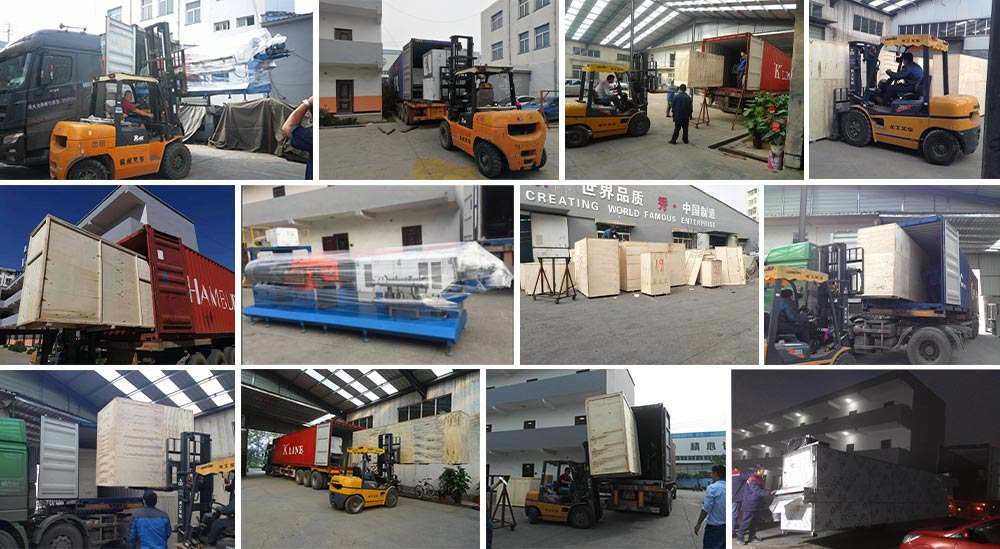

Packaging and delivery:


shipment


Our exhibition:


exhibition


Certification:


Our company has obtained internationally recognized CE certification, SGS certification and ISO9001 certification very early, and has obtained a number of invention patent certificates and other provincial and municipal honor certificates.


certificates of pet food machines


FAQ:


Q: How long is your guarantee time?

A: One year after commissioning.


Q: How is the installation?

A: We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.


Q: If we show your our layout of the factory, can you help to design the whole process line?

A: Of course, our experienced engineers and technical employee can help you to arrange the layout and installation of the whole production line based on your real situation.


Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock, or it is 20-25 days if the goods are not in stock, it is according to quantity.


Q: Will you help us if we accrue any problems in future production?

A: Yes, we will always be at your service. You can contact us via mobile, WhatsApp, Wechat, and so on. We will help solve your problems as soon as possible.
