Artificial Rice Extruder
There are many types of extruders according to their uses. There are extruders for puffed food, extruders for feed, and extruders for high-moisture protein. Therefore, according to different functions, the structure of the corresponding extruder is also different. The main difference is the length-diameter ratio of the screw. The length-to-diameter ratio of the screw determines what product to make. Secondly, it is divided from the advanced degree of the process and the iteration of the extruder. The original extruders were single-screw extruders, then twin-screw extruders, and now there are 3-screw extruders. However, in terms of performance and stability, the twin-screw extruder is currently the best. Because the practicability of the single-screw extruder is too narrow, it is only suitable for a small amount of products, while the 3-screw extruder is still in the development stage, and its stability and applicability have not yet reached the best state, so the most widely used currently is twin-screw extrusion. machine. In fact, the single-screw extruder is very suitable for making artificial rice, but the output is too small and can only reach the output of 100kg/h. Although ordinary twin-screw can be used to make artificial rice, the shape and color of the rice produced are not ideal. Therefore, according to this pain point, our company has intensified research and development efforts, and finally through unremitting efforts to break through the technical difficulties, we have produced a new type of rice extruder that can not only produce high-quality artificial rice, but also greatly increase the output.

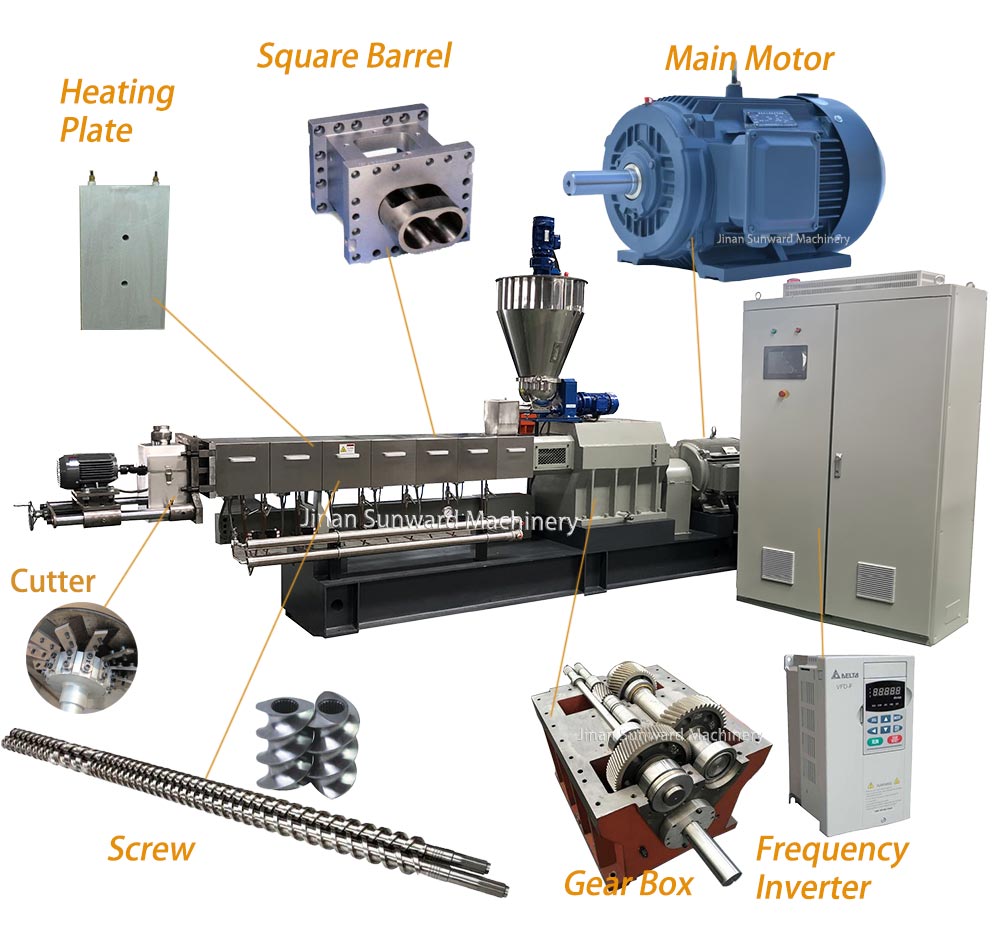

Features:
1. frequency speed controlling with high automation and stable performance.
2. The screws are made of alloy steel and special craft, durable usage, high pressure, the screw life is longer. Adopting the building block structure and combining willingly according to the different demands.
3. The forced lubrication system, can guarantee the equipment transmission life longer.
4. The touch screen control system can clearly view and monitor various work indicators. Auto-temperature control system makes the temperature control more direct viewing and the parameter more precise.
5. Self-cleaning, when stopping, can be cleaned without disassembling.
6. According to different screw design rates to full different technology requests.
7. This equipment has a wide material, multi-shape products, and flexible collocations. We can produce the different products according to the different models and collocations.
8. The screw adopts high strength and high wear resistance alloy tool steel Cr12MoV or high speed steel W6Mo5Cr4V2
9. The barrels are building block combined square barrels, which are easy to disassemble and replace. The barrels material is 45# Alloy Steel with Alloy sleeves, and the life of the barrels are several times longer than that of ordinary barrels.
Technical Parameters:
| Model | Installed Power | Main Motor Power | Capacity | Dimension |
| TSE75(Square Barrel) | 106/126KW | 55/75KW | 300-500kg/h | 5500×1200×1500mm |
| TSE78(Square Barrel) | 126/141KW | 75/90KW | 600-800kg/h | 5800×1200×1500mm |
| TSE95(Square Barrel) | 141/161kw | 90/110kw | 800-1000kg/h | 6300×1300×1700mm |

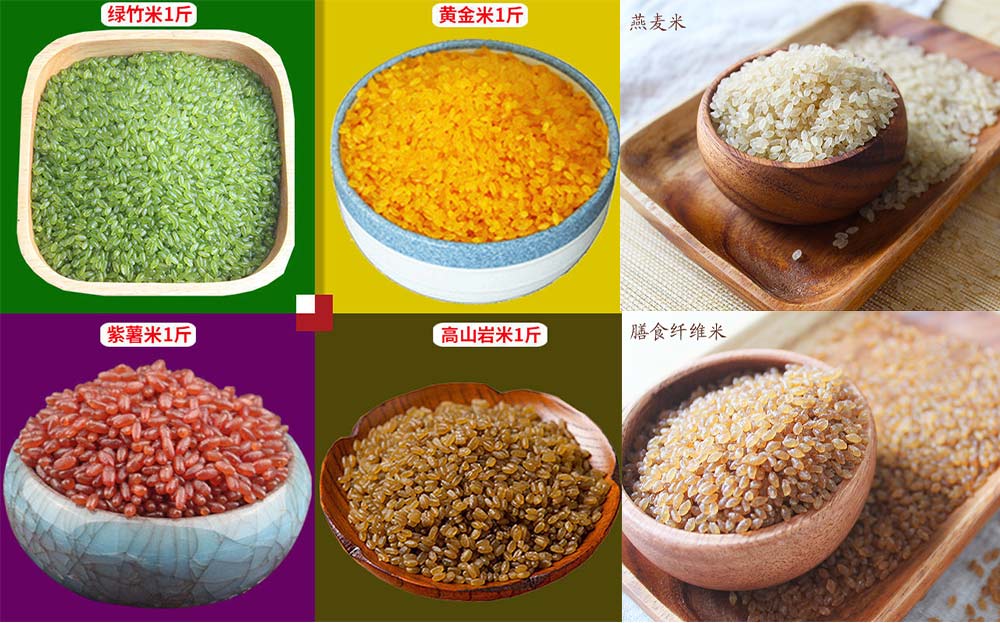

Artificial rice samples:
This is a multifunctional extruder. In addition to producing all kinds of artificial rice (fortified rice, golden rice, nutrition rice, instant rice), it can also produce all kinds of puffed snacks, such as core filling snacks, cheese balls, corn sticks, puffed rice, Bugle snacks, Doritos, Cheetos, rice crackers, etc.

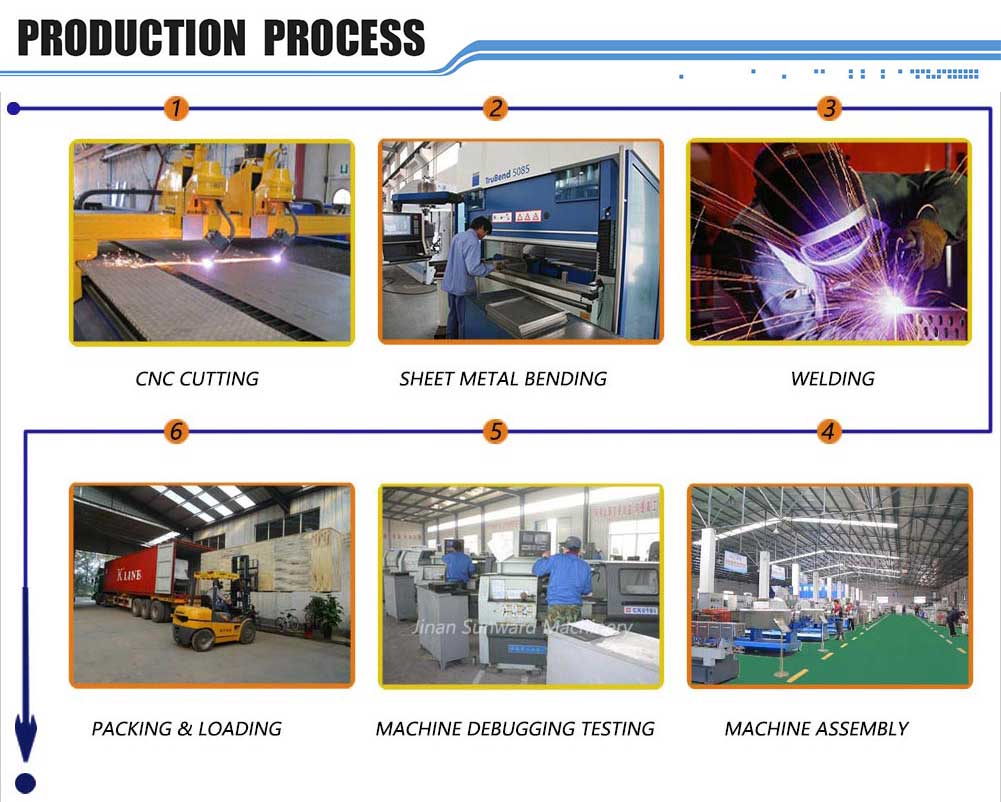

Production process of our machinery:
Our factory:
Our team:
Projects of our clients:
Video of artificial rice production:
Packaging and delivery:
Our exhibition:
Our certificates:
Our company has obtained internationally recognized CE certification, SGS certification and ISO9001 certification very early, and has obtained a number of invention patent certificates and other provincial and municipal honor certificates.
FAQ:
Q: How long is your guarantee time?
A: One year after commissioning.
Q: How is the installation?
A: We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
Q: If we show your our layout of the factory, can you help to design the whole process line?
A: Of course, our experienced engineers and technical employee can help you to arrange the layout and installation of the whole production line based on your real situation.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock, or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: Will you help us if we accrue any problems in future production?
A: Yes, we will always be at your service. You can contact us via mobile, WhatsApp, Wechat, and so on. We will help solve your problems as soon as possible.
